Awlsim - Quick start tutorial

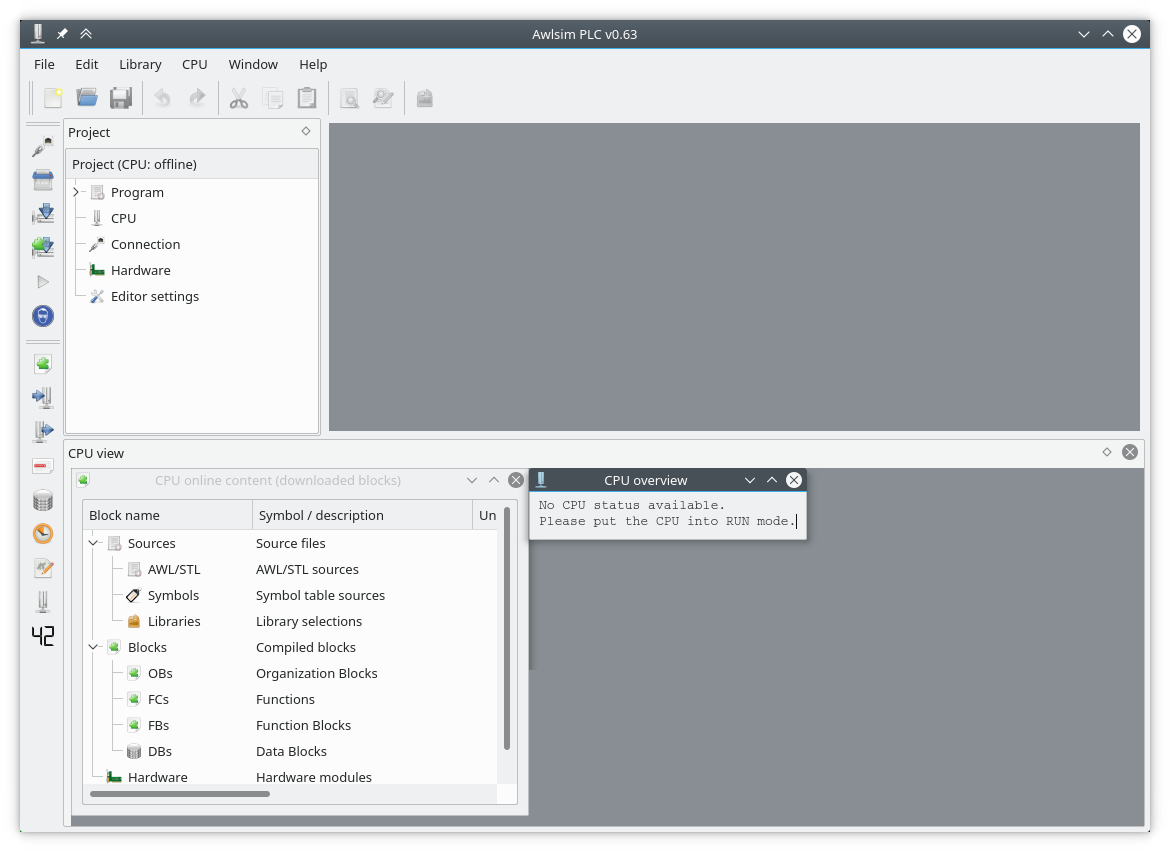

Start the GUI by invoking awlsim-gui on Linux, awlsim-win.cmd on Windows or awlsim.cmd on Windows (Awlsim standalone package). The following screen will appear:

awlsim-gui

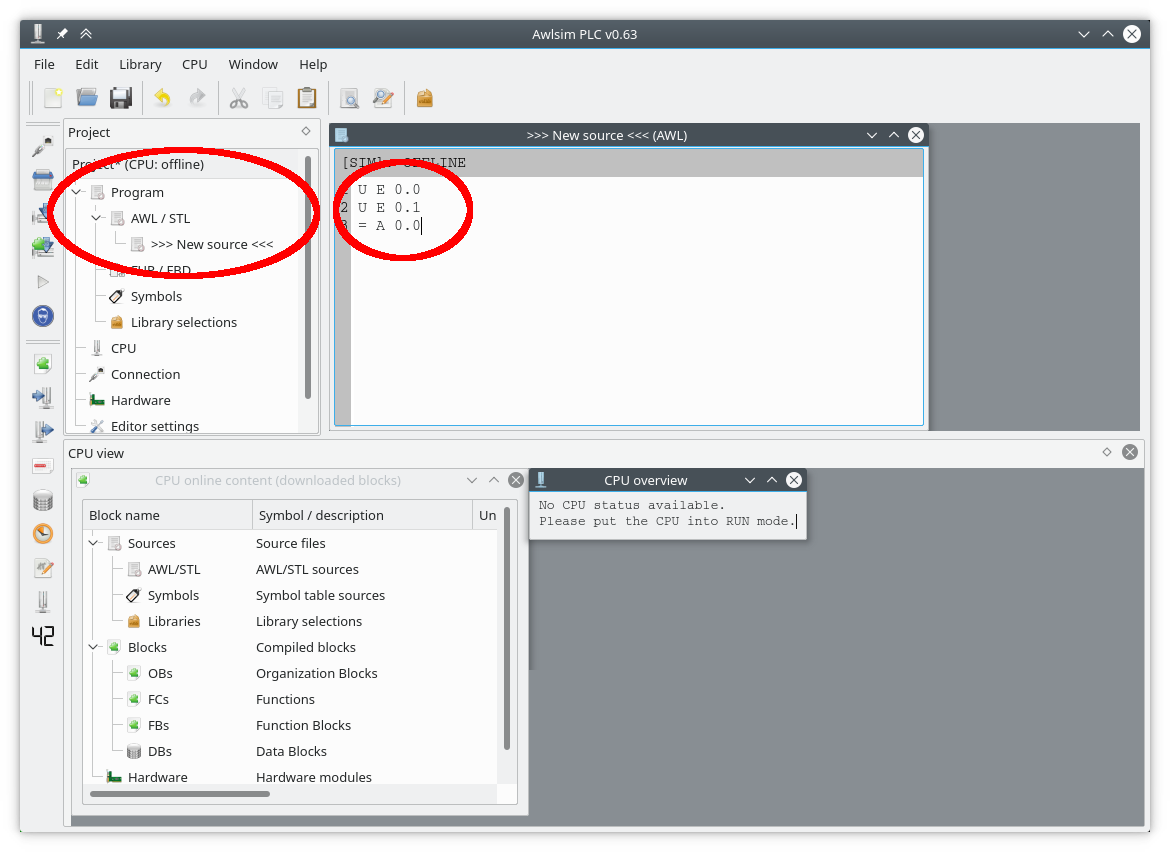

Enter the AWL/STL program in the editor area:

awlsim-gui

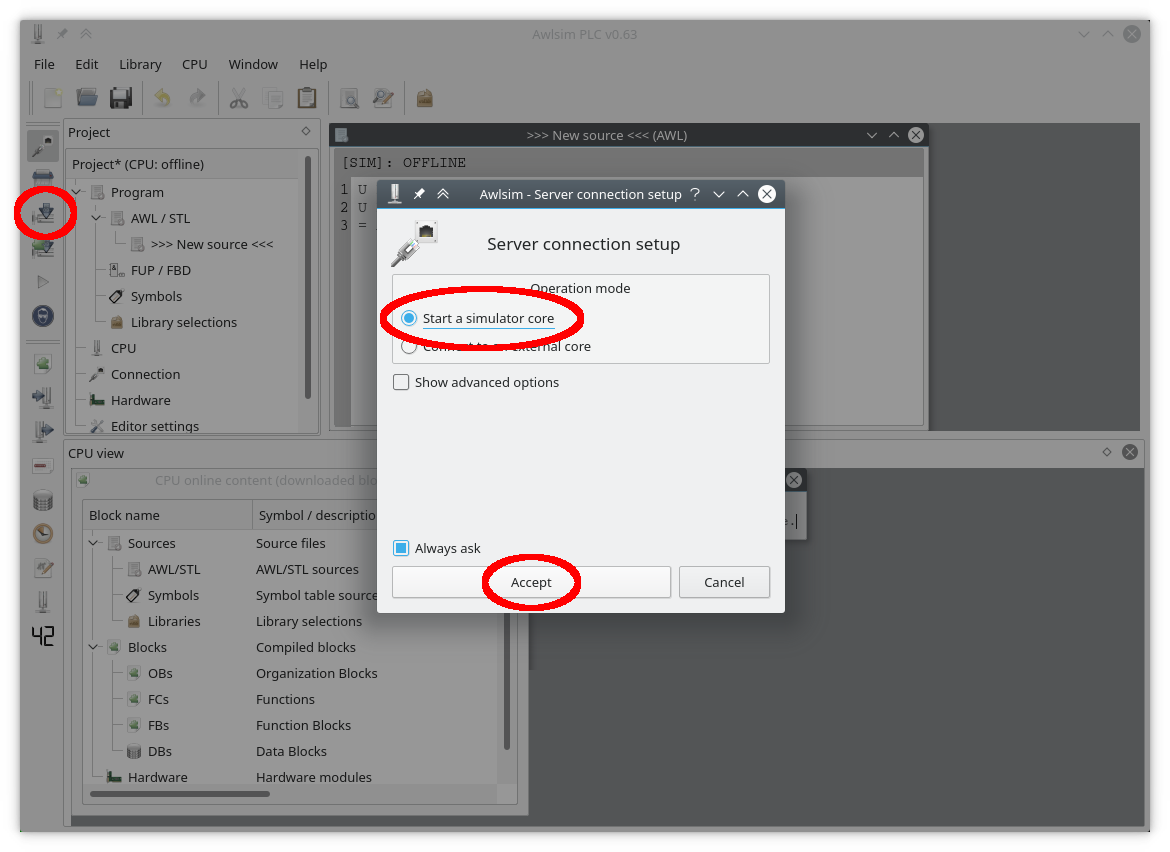

Press the download all sources button. If you did not do this before, the connect dialog will appear. Just select a simulator core and click Accept.

You will need to download the sources again, if you edit the sources later. But the connect dialog will not appear again.

awlsim-gui

Press the RUN button to start the simulated CPU:

awlsim-gui

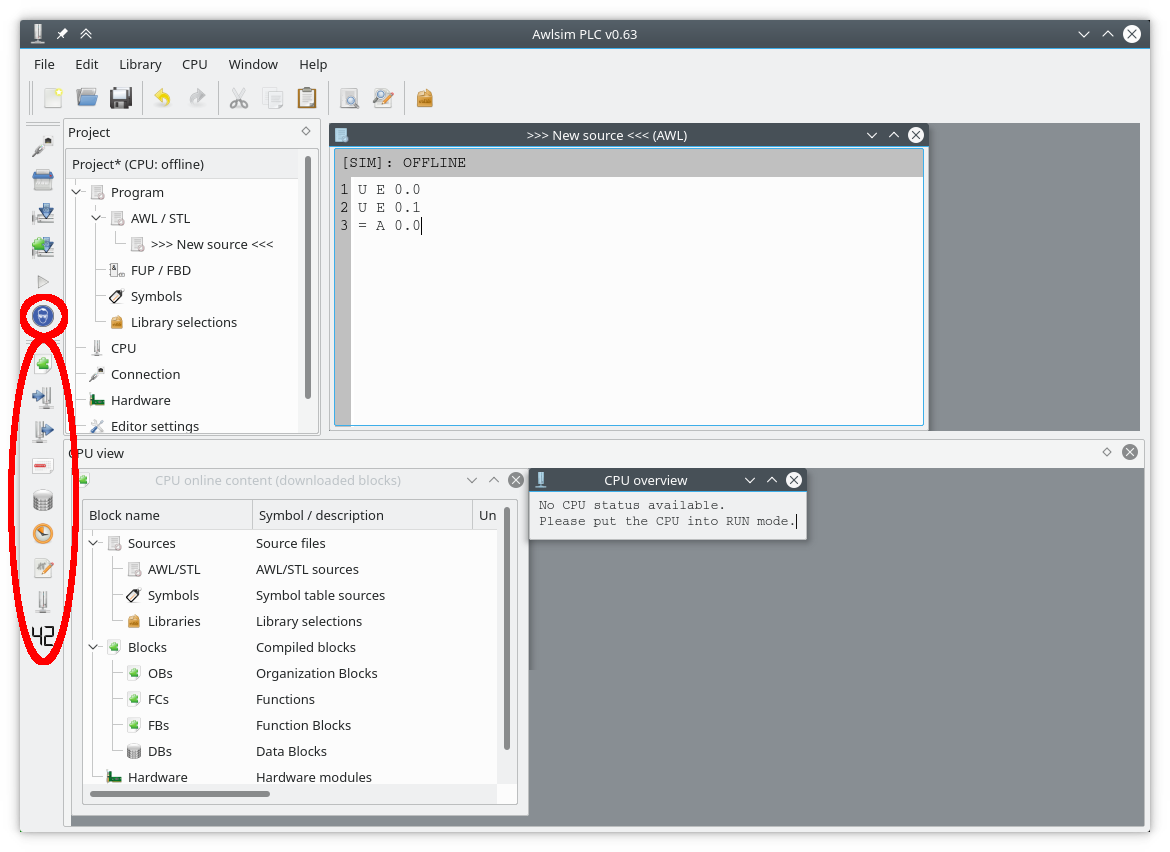

You may want to open some inspection windows to see the program output or manually set some program input:

awlsim-gui
